Key Features

Model: SOL-XP01
Upstream Rate: 1.25Gbps, Downstream Rate: 2.5Gbps
Interface: 1x Gigabit RJ45 port, Fiber Port: 1 x SC/UPC
Connector Type: Single fiber WDM (SC connector)
Max Transmission Distance 20 km

Description

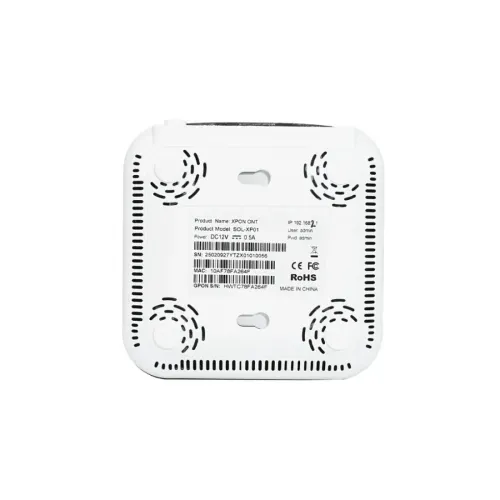

Solitine SOL-XP01 Gigabit XPON ONU

The Solitine SOL-XP01 Gigabit XPON ONU delivers high-speed fiber connectivity for modern FTTH deployments and triple-play services, including Internet and IPTV support. The Solitine ONU supports upstream data rates of 1.25Gbps and downstream speeds up to 2.5Gbps for smooth streaming and browsing. It features a single fiber WDM optical interface with an SC connector and Class B+ optical module. The Solitine SOL-XP01 ONU supports a maximum transmission distance of 20 kilometers for extended network coverage. PON RX sensitivity is rated below -28dBm at 1490nm, while PON TX power ranges from 1 to 5dBm at 1310nm. Solitine XPON ONU complies with ITU-T G.984.x standards, ensuring stable and standardized XPON performance. The Solitine ONU includes one SC/UPC fiber port and one 10/100/1000Mbps RJ45 Gigabit LAN port. Solitine SOL-XP01 ONU supports WAN connection modes such as PPPoE, Dynamic IP, Static IP, and Bridge configuration. Advanced software features include DHCP server, client, client list, address reservation, and DHCP relay. Diagnostic tools like Ping, Ping6, Tracert, and Tracert6 help administrators monitor network status effectively. Firewall functions include ALG, IP filter, MAC filter, URL filter, port filter, port forwarding, and DMZ. The Solitine SOL-XP01 Gigabit XPON ONU supports IPv4 and IPv6 with Radvd, DHCPv6, MLD proxy, and MLD snooping. VLAN capability supports 802.1Q tag VLAN with up to 4094 VLAN IDs for flexible segmentation. Additional services include Dynamic DNS and DHCP configuration for business Internet use. The unit uses passive ventilated cooling and operates on DC12V/1A power supply. LED indicators display Power, LOS, PON, and LAN status for quick troubleshooting. Rear ports include reset and power buttons, power jack, RJ45, and PON port. Solitine SOL-XP01 XPON ONU meets CE and RoHS certifications and complies with IEEE 802.3 EPON MAC and RFC4837 standards.
